Available Profender Car Suspension Kits for Denza D9

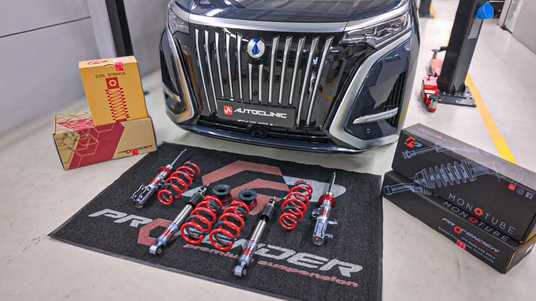

Autoclinic Singapore offers a Profender FITZ-series coilover kit engineered specifically for the Denza D9. Built for larger sedans, MPVs, and vans, the FITZ series delivers comfort at low speeds and firmness at higher speeds, with components sized and tuned for Singapore's road conditions and tropical climate.
| Specification | Details |
|---|---|
| Vehicle Type | Premium Electric MPV |
| Dimensions | Length: 5,250mm, Width: 1,960mm, Height: 1,920mm |
| Wheelbase | 3,110mm |
| Battery | 103.36 kWh BYD Blade Battery (LFP) |
| Elite (FWD) Output | 230 kW (308 hp) / 360 Nm |
| Grandeur (AWD) Output | 270 kW (369 hp) / 479 Nm |
| Elite (FWD) 0-100 km/h | 9.5 seconds |
| Grandeur (AWD) 0-100 km/h | 6.9 seconds |
| Elite (FWD) WLTP Range | Approximately 520 km |
| Grandeur (AWD) WLTP Range | Approximately 480 km |
| DC Fast Charging | Up to 166 kW |
| Seating Capacity | 7 people |
| Boot Space | 410 litres, expandable when seats are folded |
| Drive Configuration | FWD (Elite) or AWD (Grandeur), both offered in Singapore |
Enhanced Cabin Refinement at Speed
The Grandeur AWD variant is equipped with Denza's DiSus-C intelligent damping system, while the Elite FWD variant relies on a conventional passive setup. Independent reviews of both variants in Singapore have noted the same limitation regardless: on speed humps and bumpier patches, the D9's long wheelbase and soft suspension bias introduce noticeable vertical motion, and the Grandeur can show more body roll through corners than its size might suggest. Profender's FITZ-series monotube dampers and progressive springs are engineered to reduce this specific vertical motion and body roll, reinforcing the quiet, settled character the D9 is known for rather than working against it.
Better Composure Carrying the D9's Substantial Weight
With a kerb weight exceeding 2.3 tonnes, driven largely by its 103.36 kWh battery pack, the D9 places real demand on suspension components on every journey, not just when fully loaded. Profender's 52mm zinc-coated body and 46mm piston rod are built for exactly this class of vehicle, mid-to-large MPVs and vans, providing the strength needed to manage this weight without sacrificing the comfort Denza owners expect.
Improved Control for the Grandeur AWD Variant
The Grandeur AWD variant's 479 Nm of torque and 6.9-second 0-100 km/h time is genuinely quick for a 7-seater MPV of this size. That torque transmits through the suspension more abruptly than a combustion engine's gradual power delivery, and factory dampers can feel less composed under repeated hard acceleration. Profender's inverted rear damper configuration and progressive spring rates are calibrated to handle this torque delivery, keeping the D9 settled regardless of how briskly it's driven.
Better Comfort When Carrying a Full Complement of Passengers
The D9's zero-gravity second-row seats and generous third-row legroom are central to its appeal as a family or executive MPV, and it's frequently driven with passengers across all three rows. Factory suspension, calibrated as a fixed-rate compromise, can feel less settled when fully loaded. Profender's adjustable damping lets owners optimise settings for typical passenger load, maintaining the comfort level Denza's cabin design promises regardless of occupancy.
Tropical Climate Durability for a Premium Long-Term Vehicle
Given the D9's positioning as a premium, long-term family or executive vehicle, component durability across years of ownership matters. Profender car suspension systems feature zinc-coated components tested to ISO 9227 standards for over 240 hours, providing stronger corrosion resistance than standard factory coatings, well suited to Singapore's humidity and rainfall.
Profender vs Factory Denza D9 Suspension
| Manufacturer standard | Factory Jaecoo 6 EV Suspension | Profender Car Suspension |
|---|---|---|
| Ride Quality | Fixed damping, general export-market tuning | Adjustable 16-click damping per corner |
| Highway Refinement | Can transmit imperfections at speed | Better absorption over expansion joints |
| AWD Torque Handling (Grandeur) | Can feel unsettled under hard acceleration | Progressive springs matched to torque delivery |
| Load Adaptability | Fixed spring rates | Adjustable for different passenger loads |
| Corrosion Protection | Standard coating | 240+ hour zinc coating (ISO 9227) |
| Adjustability | None | 16 settings per damper |
| Heavy EV Handling | Factory-spec for 2.3+ tonne kerb weight | 52mm zinc-coated body engineered for large MPVs |
| Warranty | Manufacturer standard | 1-year/30,000km through authorised distributor |
Frequently Asked Questions – Denza D9 Profender Car Suspension
Most D9 owners who switch to Profender car suspension cite a desire to reinforce the refined, quiet ride the D9 is already known for, along with better composure carrying the vehicle's substantial 2.3+ tonne weight and, for Grandeur AWD owners, better control under the variant's stronger torque output. Factory suspension works adequately for daily use but is tuned as a general-purpose compromise across export markets rather than optimised specifically for Singapore's roads.
Properly installed and adjusted Profender car suspension should not negatively impact the D9's WLTP range, approximately 520 km for the Elite FWD variant or 480 km for the Grandeur AWD variant. The suspension maintains proper ride height and geometry rather than altering it significantly. Range primarily depends on driving style, air-conditioning use, and road conditions rather than suspension setup.
Yes. Profender's kit for the Denza D9 is engineered to suit both configurations sold in Singapore, accounting for the different torque outputs and weight distribution between the FWD Elite and AWD Grandeur variants. The adjustable damping allows owners of either variant to optimise settings for their specific driving needs.
Yes. The 16-click adjustable damping system allows you to fine-tune compression and rebound at each corner. This suits the D9's role as both a comfortable daily driver and a fully loaded 7-seater for family or executive use. Your installer will demonstrate adjustment procedures and recommend starting points based on your typical usage.
Profender suspension systems are designed to meet LTA's requirements for aftermarket suspension modifications, which specify that changes should not adversely affect steering and manoeuvring, and that the vehicle's lowest point should not contact the road surface at any time. Installed correctly through an authorised installer, this kind of suspension upgrade is a standard, accepted modification. We recommend informing your motor insurer of any suspension modification as well.
Suspension modifications generally do not void your entire vehicle warranty, but could affect warranty claims on suspension-related components specifically. It's advisable to check with your Denza dealer about specific warranty implications. Profender car suspension comes with its own 1-year/30,000km warranty through Syncrowerkz Sdn Bhd, providing coverage for the upgraded components.
